Advanced Broadcast Spectrum Intelligence for RF/TSCM Operations

FRAME RF Broadcast Radio/TV Plugin is a dedicated analysis module designed to interpret and classify broadcast RF activity within the 80–700 MHz range, transforming raw spectrum events into operationally readable intelligence.

Unlike traditional spectrum viewers that only display signal presence, the plugin introduces a structured operational layer capable of distinguishing:

• Broadcast-compatible activity
• Strong indoor rebroadcast signals
• Persistent abnormal RF sources
• Out-of-band transmissions
• Potential local modulators or masked transmitters
• High-power anomalous signals incompatible with standard environmental propagation

The system operates directly on aggregated RF events generated by FRAME RF Core and correlates them against an extensive technical broadcast vocabulary covering:

• FM Radio
• DAB / DAB+
• DVB-T / DVB-T2
• VHF TV
• UHF TV
• Regional and national multiplexes
• Technical channel plans
• Italian broadcast allocations

The objective is not content decoding, but operational RF interpretation based on:

• Persistence
• Signal strength
• Frequency coherence
• Reappearance patterns
• Environmental compatibility
• Temporal behavior

---

Main Features

Operational RF Classification

The plugin automatically classifies signals into categories such as:

• COHERENT WITH BROADCAST PLAN
• BROADCAST VERY STRONG INDOOR
• OUTSIDE BROADCAST PLAN
• STRONG PERSISTENT SIGNAL
• LOCAL REPEATER / MODULATOR COMPATIBLE

This enables rapid visual identification of RF conditions requiring further verification.

---

Intelligent Vocabulary Correlation

FRAME RF includes a large operational vocabulary database capable of matching detected frequencies against known broadcast allocations.

The matching system provides:

• Service identification
• Channel information
• Multiplex correlation
• Regional allocation mapping
• Candidate operator references
• Technical broadcast consistency evaluation

The matching process remains non-deterministic and analytical, prioritizing precision and reduction of false positives.

---

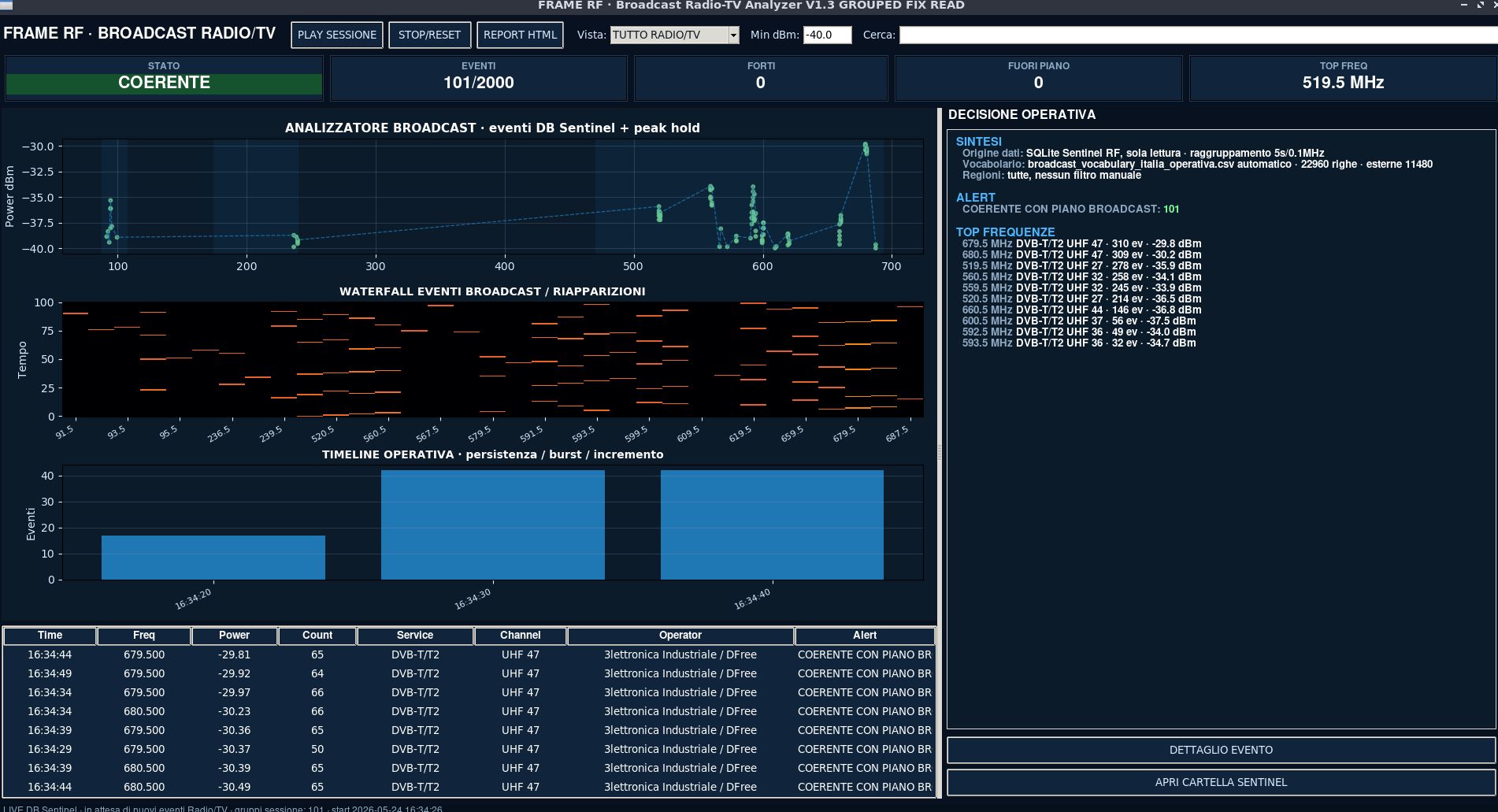

Live RF Operational Interface

The plugin provides a dedicated live operational environment featuring:

• Real-time RF event aggregation
• Peak-hold broadcast analysis
• Waterfall persistence visualization
• Timeline-based event correlation
• Operational status engine
• Automatic anomaly highlighting
• Dynamic alert scoring

The interface is designed specifically for TSCM-style interpretation workflows rather than generic SDR visualization.

---

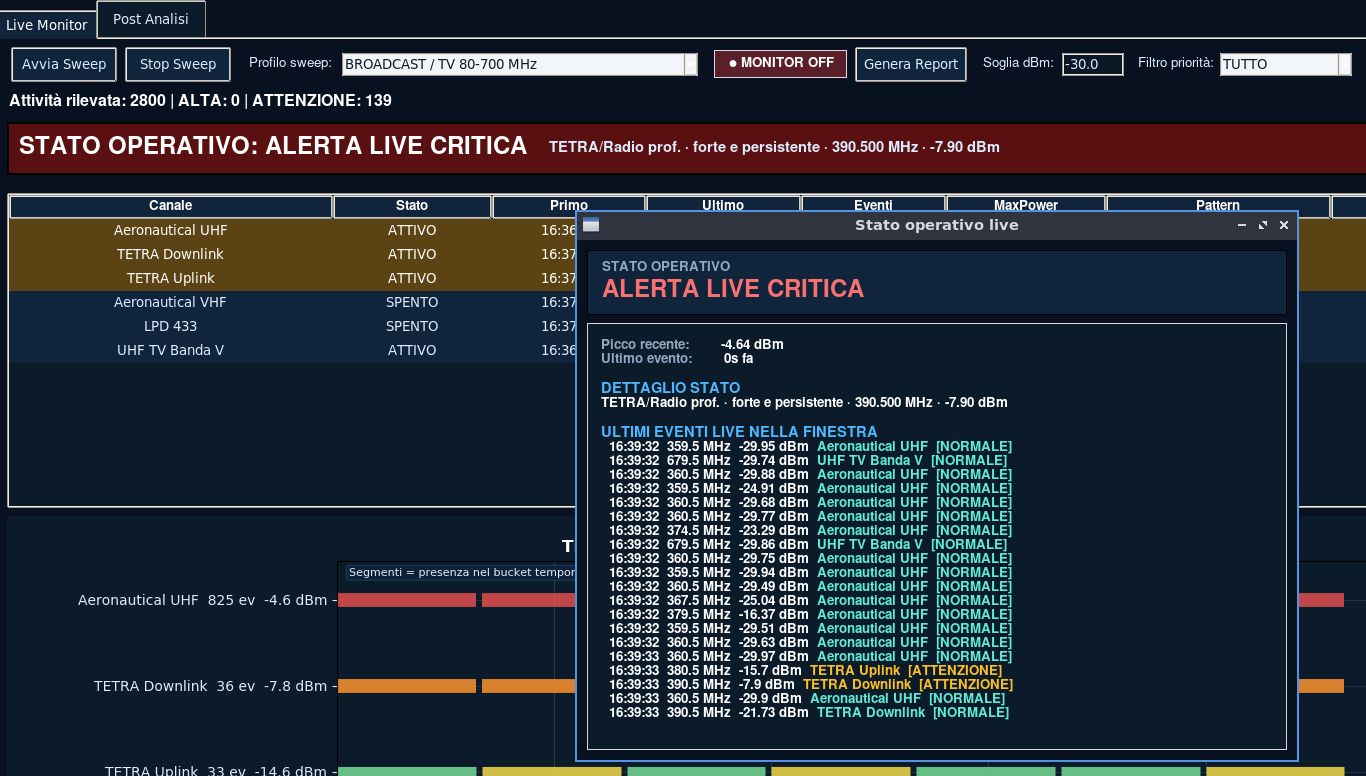

Strong Signal Detection

One of the core functions of the plugin is identifying broadcast signals that are technically coherent in frequency but incompatible in power or environmental behavior.

Examples include:

• Indoor broadcast levels excessively high for normal external reception
• Persistent local rebroadcast activity
• Hidden modulators
• Improvised repeaters
• Strong VHF/UHF carriers inside shielded environments

The plugin highlights these conditions automatically and generates operational alerts.

---

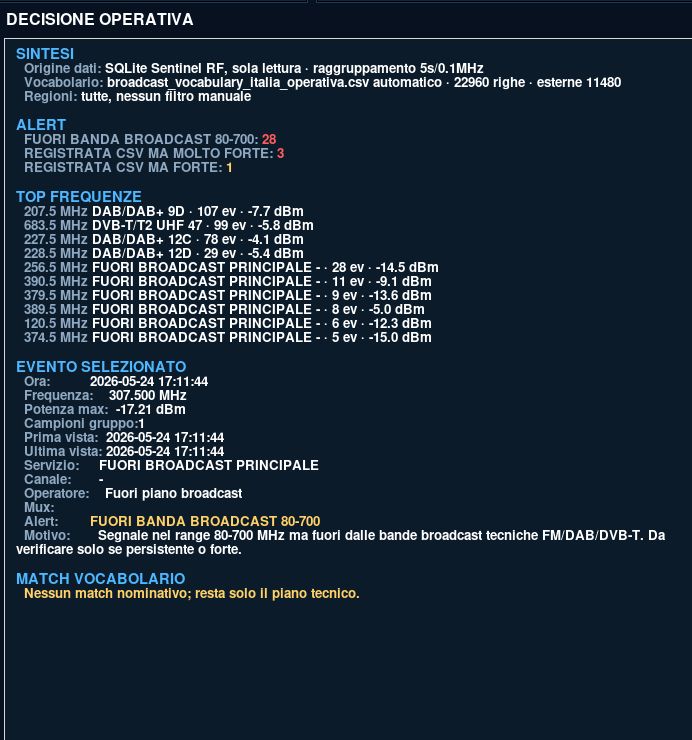

Out-of-Band Broadcast Detection

FRAME RF can identify persistent transmissions inside the 80–700 MHz broadcast region that do not match known technical allocations.

These events are classified separately as:

OUTSIDE BROADCAST PLAN

This includes:

• Unknown carriers
• Local RF generators
• Experimental transmitters
• Non-standard emissions
• Suspicious persistent activity

The system intentionally avoids deterministic attribution and instead presents an operational compatibility assessment.

---

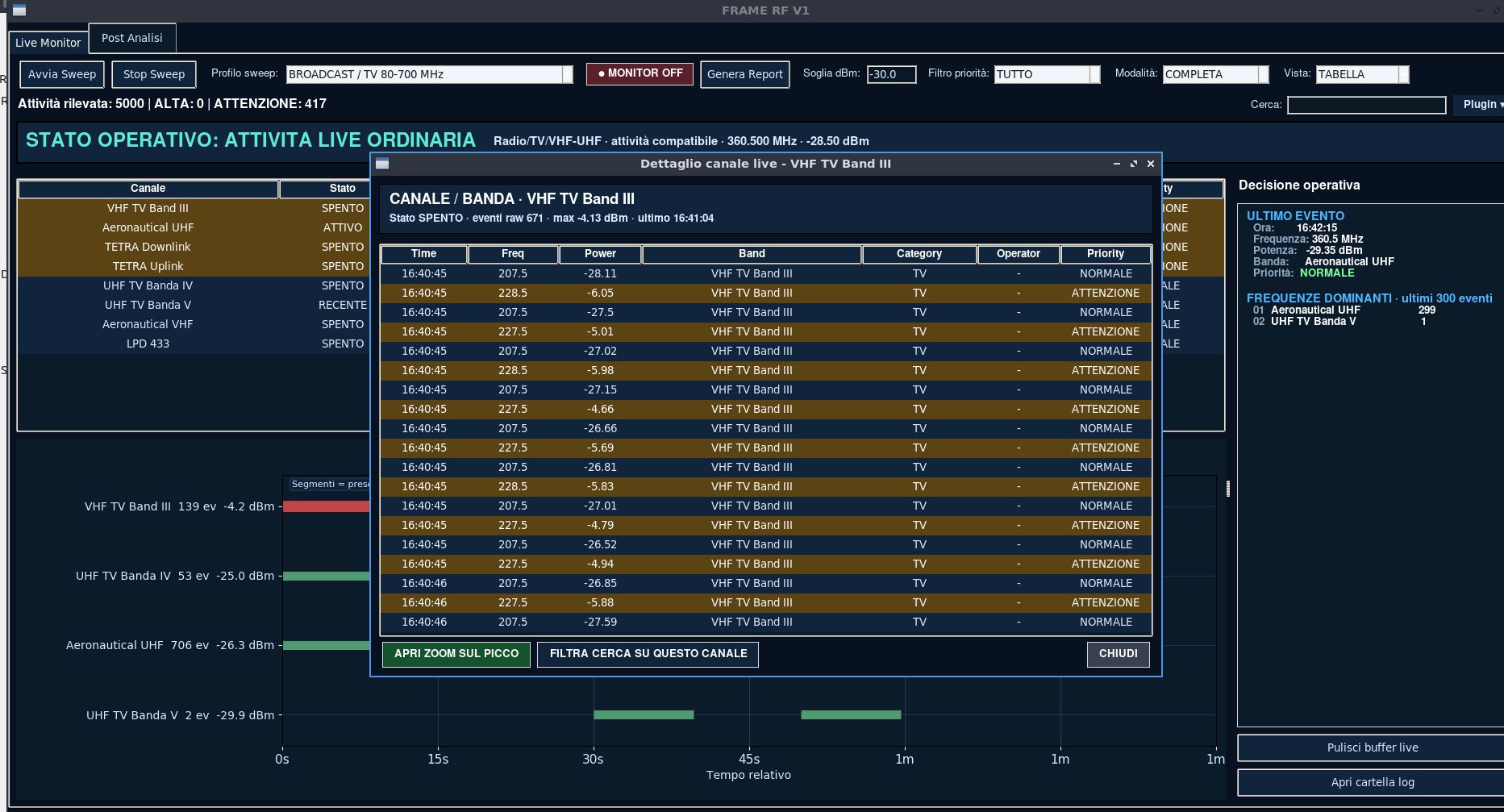

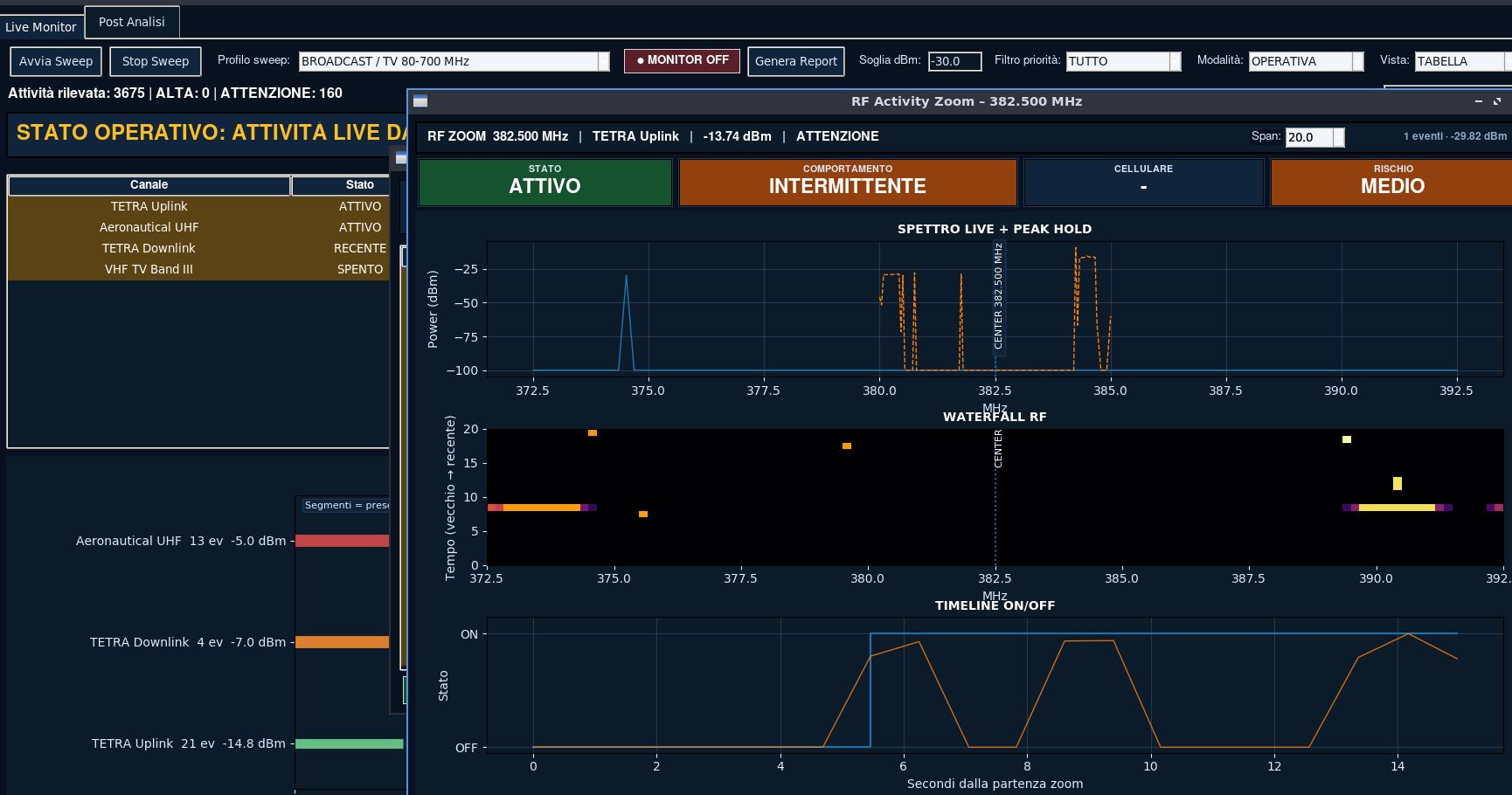

Operational Zoom & RF Timeline Analysis

The Broadcast Plugin includes advanced zoom analysis tools capable of visualizing:

• RF burst behavior
• Persistence over time
• Intermittent transmission patterns
• Live activity state transitions
• Peak evolution
• Waterfall temporal structure

This allows operators to distinguish between:

• Continuous infrastructure transmissions
• Intermittent local sources
• Repeated bursts
• Sporadic emissions
• Strong persistent RF activity

---

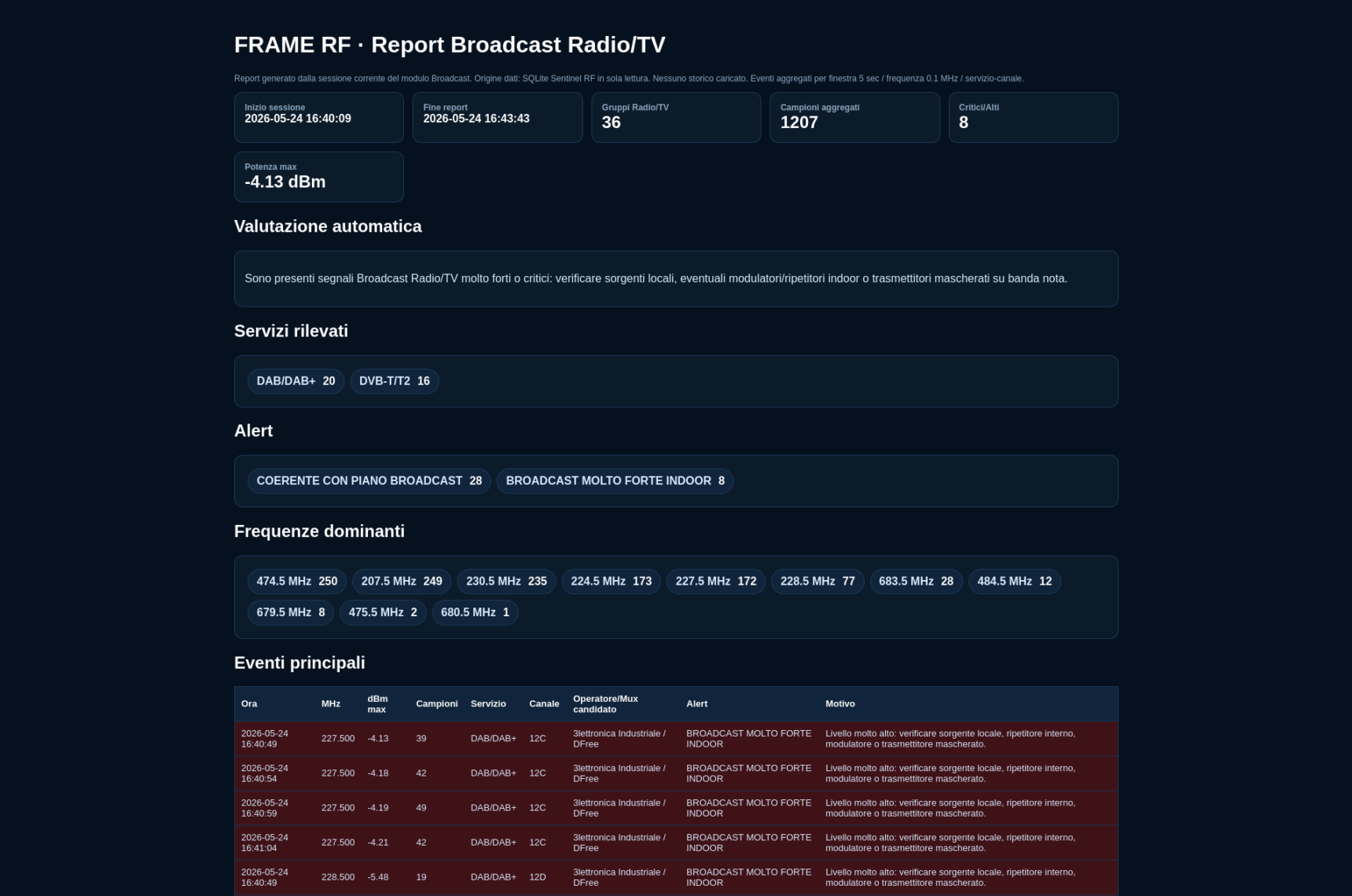

HTML Report Generation

The plugin automatically generates structured HTML operational reports including:

• Session summary
• Dominant frequencies
• Alert statistics
• Operational evaluation
• Frequency persistence
• RF anomaly summaries
• Signal classification
• Timeline analysis
• Technical compatibility notes

Reports are designed for rapid field review and post-analysis workflows.

---

Example Operational Scenarios

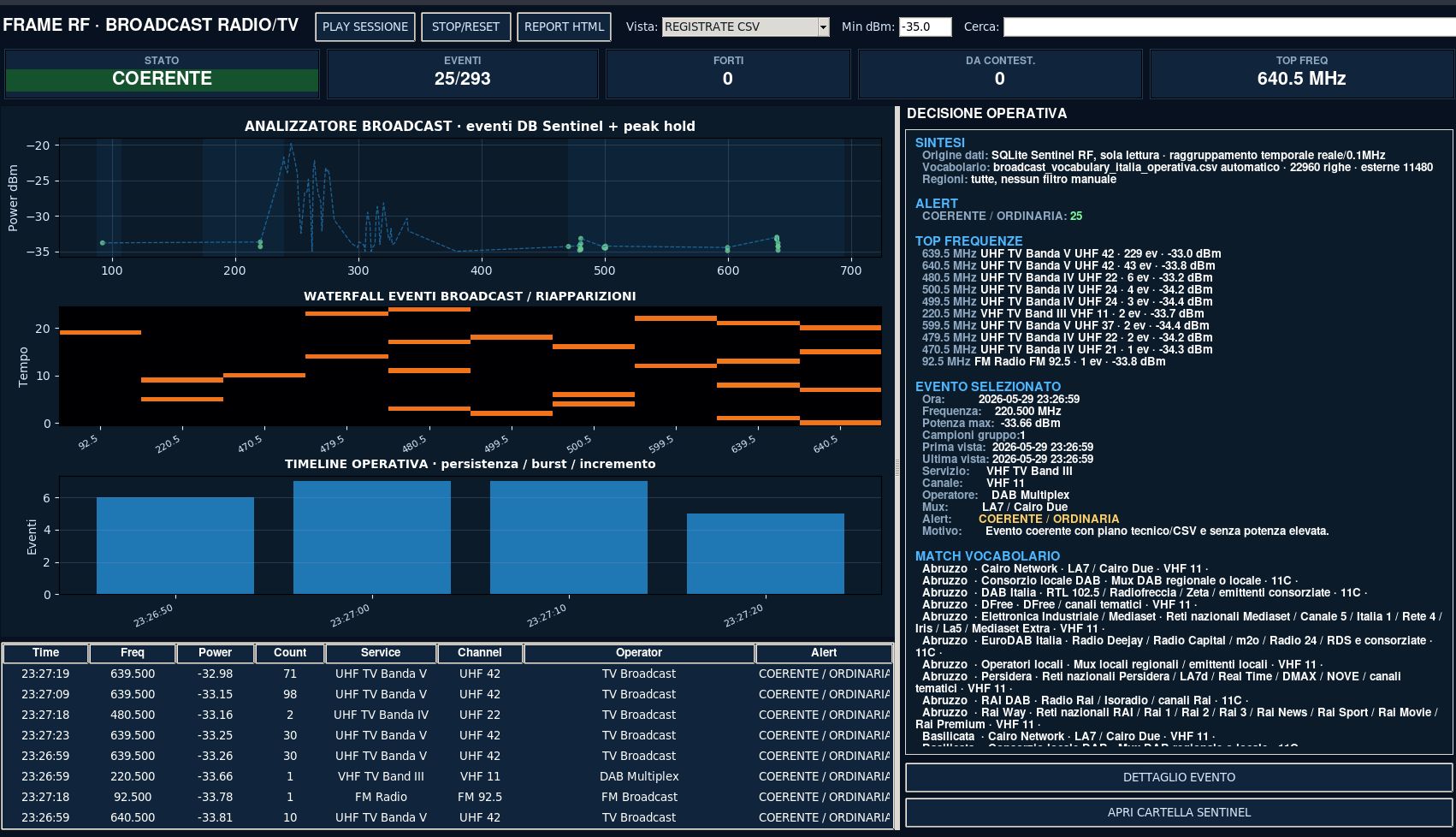

Broadcast-Compatible Environment

The system identifies frequencies coherent with national broadcast allocations and classifies the environment as operationally normal.

---

Strong Indoor Broadcast Activity

The plugin detects unusually strong DAB/DVB signals inside an environment, compatible with local retransmission or nearby RF source presence.

---

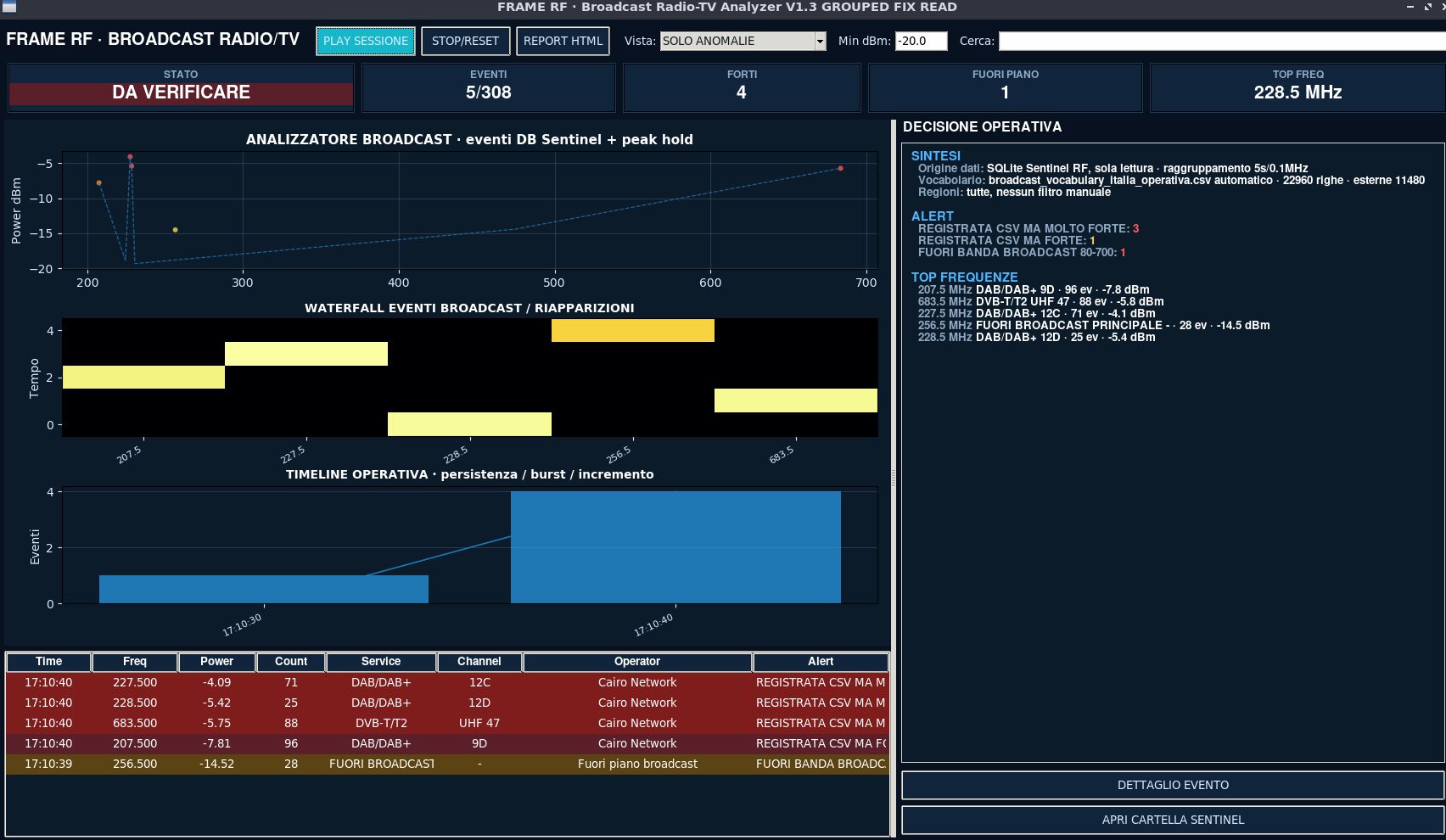

Out-of-Band RF Detection

Persistent activity detected outside known broadcast allocations within the monitored range.

Video Demonstration

The following demonstration shows a controlled RF/TSCM test. A local RF transmitter is activated and FRAME RF automatically detects the resulting transmission activity.

The system analyzes the detected signal against an operational broadcast vocabulary containing more than 11,000 Italian radio and television frequency allocations. Alerts are generated based on signal compatibility with the broadcast plan, signal strength, persistence and temporal behavior.

In this example, the detected transmission is classified as outside the known broadcast allocations and generates an operational alert for further verification.
